Aerospace & Defence Products
Deployed in field hospitals, on flight lines, military bases, and searborne applications across the globe, PCI ensures a reliable quality flow of oxygen and nitrogen without the support logistics and supply chain. On-site generation and treatment will save you time and cost, allowing you to operate more efficiently and economically.
Explore
Product
Description
Quick Facts
Applications
Weighs less than a single day’s delivery of oxygen cylinders to supply a hospital and is able to supply a hospital indefinitely without the need for re-supply.
FDA 510(k) clearance
- Output flow rate: 66 lpm
- Purity: 93% +/- 3%
- Output pressure: 5 – 100 psig
Military Medical
PCI offers the complete package when it comes to oxygen generation, storage, and distribution.
- Purity: 93 +/- 3%
Medical Oxygen
Military Medical
Disaster Preparedness

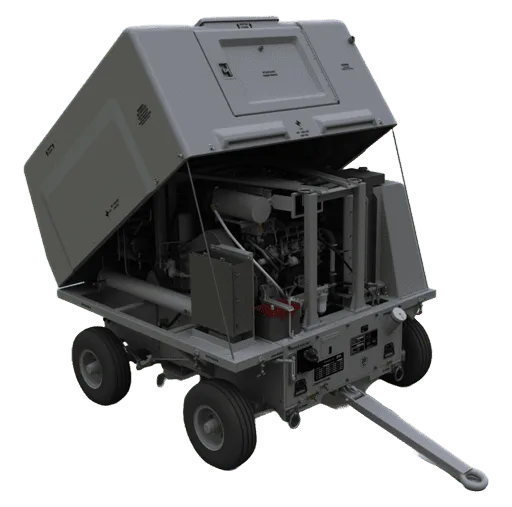

Mobile Nitrogen Generating Plant (MNGP)
Generates large volumes of high purity nitrogen on the flight-line at constant high pressure. HP SGNSC is specifically designed to support the F-16 Fighting Falcon.
- 95.5% N2, 15 scfm, 4400 psig (SGNSC)
- 99.5% N2, 10 scfm, 4400 psig (HP SGNSC)
- Approximately 3000 lbs
- 80″ Long x 72″ Wide x 63″ Tall
Aviation Ground Support
SGNSC, HP SGNSC, AND GANG
Perfect for aircraft hangers or wheel and tire shops where a central source of dry nitrogen can be piped to the point of use.
- 95.5% N2, 15 scfm, 4400 psig (ESGNSS)
- 99.5% N2, 10 scfm, 4400 psig (HP ESGNSS)
- Approximately 3000 lbs
- 80″ Long x 72″ Wide x 57″ Tall
Aviation Ground Support
ESGNSS And HP ESGNSS
Intended primarily for flight line servicing of the F-22 Stored Energy System.
- Always ready with nitrogen at high pressure
- 10 scfm @ 5,450 psi
- Approximately 3,672 lbs
- 83″ L x 73″ W x 63″ H
Aviation Ground Support
Stored Energy System Servicing Cart (SESSC)
- Ultra dry air
- 2 ppm max water
- 15 scfm @ 5500 psi
- Approximately 3000 lbs
- 83″ Long x 72″ Wide x 63″ Tall
Aviation Ground Support

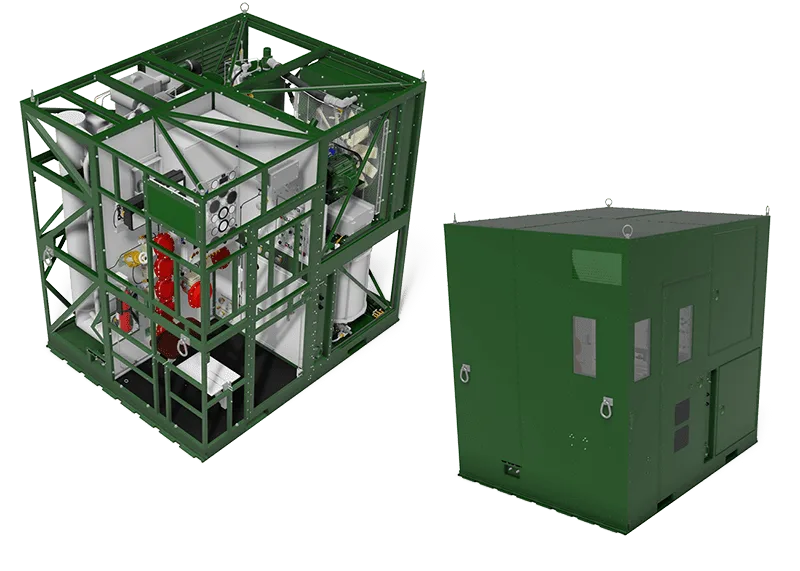

PCI manufactures state-of-the-art portable liquid oxygen and liquid nitrogen plants for on-site production. These plants feature PCI’s patented Rapid Pressure Swing Adsorbers (RPSA) for biological and chemical warfare (BCW) protection.
Aviator Breathing Oxygen
Military Flightline
Military Medical
