SGNSC, HP SGNSC, AND GANG ?>

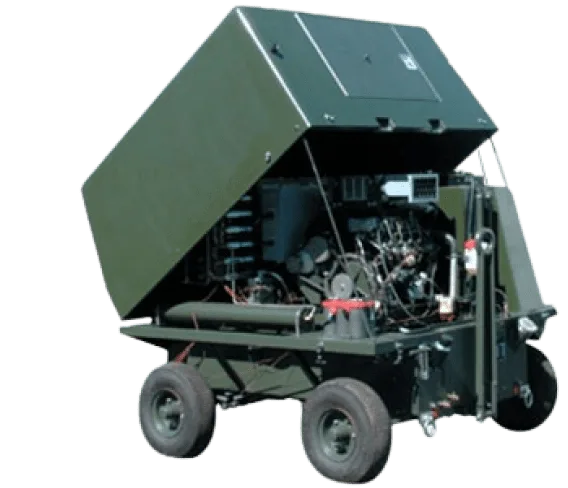

The Self Generating Nitrogen Servicing Cart (SGNSC) completed extensive and rigorous testing to validate its suitability for military usage in all locations around the world under all possible environmental conditions. HP SGNSC is specifically designed to support the F-16 Fighting Falcon.


SGNSC, HP SGNSC, AND GANG

The Self Generating Nitrogen Servicing Cart (SGNSC) completed extensive and rigorous testing to validate its suitability for military usage in all locations around the world under all possible environmental conditions. HP SGNSC is specifically designed to support the F-16 Fighting Falcon.

Advantages

  • 01 95.5% N2, 15 scfm, 4400 psig (SGNSC)
  • 02 99.5% N2, 10 scfm, 4400 psig (HP SGNSC)
  • 03 Approximately 3000 lbs
  • 04 80″ Long x 72″ Wide x 63″ Tall
  • 05 Totally eliminates any nitrogen resupply requirements
  • 06 Automated purity and pressure control
  • 07 Completely sealed system eliminates contamination

Applications

Scroll and Explore

Characteristic
Value / Description
N₂ Purity
Part # HP: 791600-003 (NSN: 3655-01-572-1180)
Part # LP: 791600-001 (NSN: 3655-01-463-3338)
Pressure
15 scfm @ 4400 psi (SGNSC) | 10 scfm @ 4400 psi (HP SGNSC)
Weight
Approximately 3000 lbs
Dimensions
80″ Long x 72″ Wide x 63″ Tall
Powered by
Diesel fuel, JP-4, JP-5, JP-8, or Jet A
On board storage
830 scf on board nitrogen storage at 4400 psi

Dimensions
